USB-C Panel Socket 6 Pin 10pcs by The Lord of the Tools – Mount

Description

Product Overview

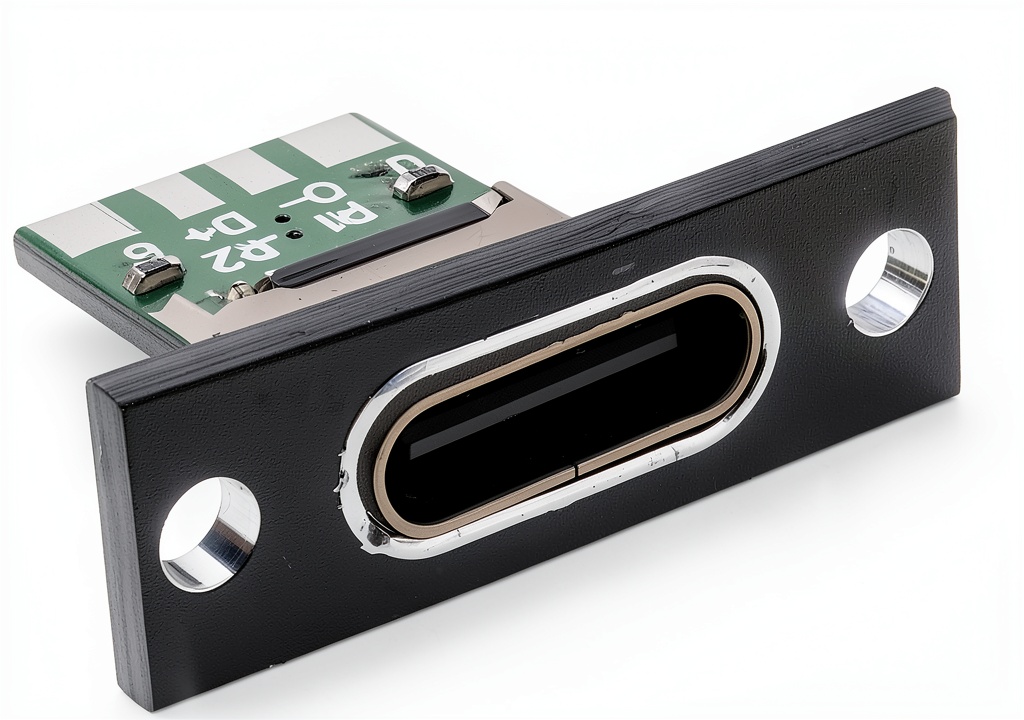

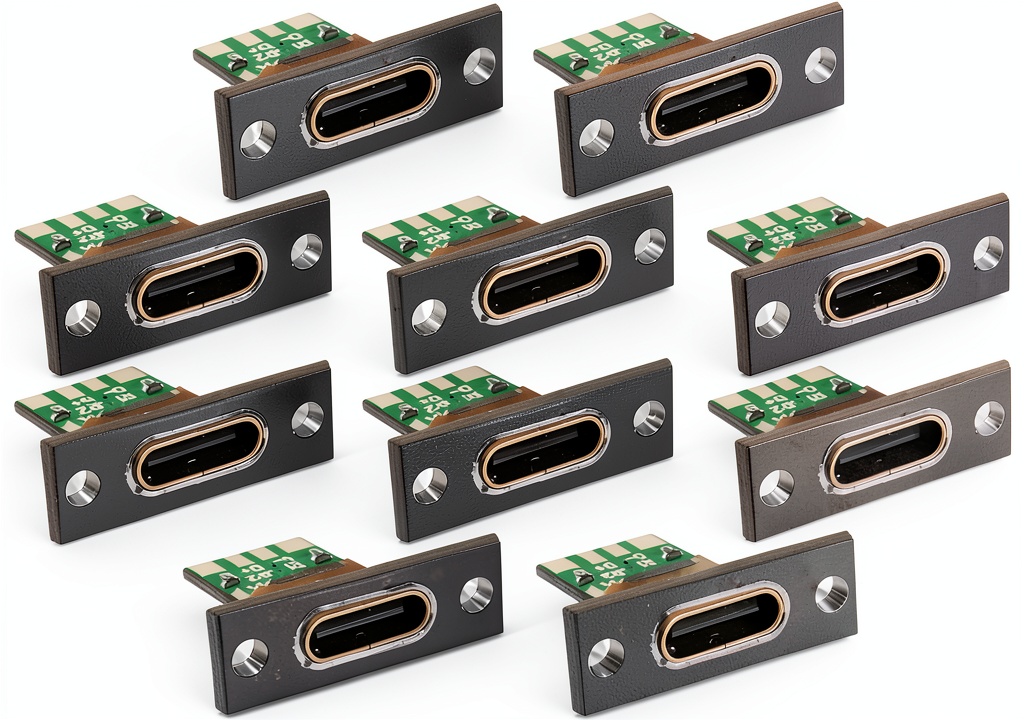

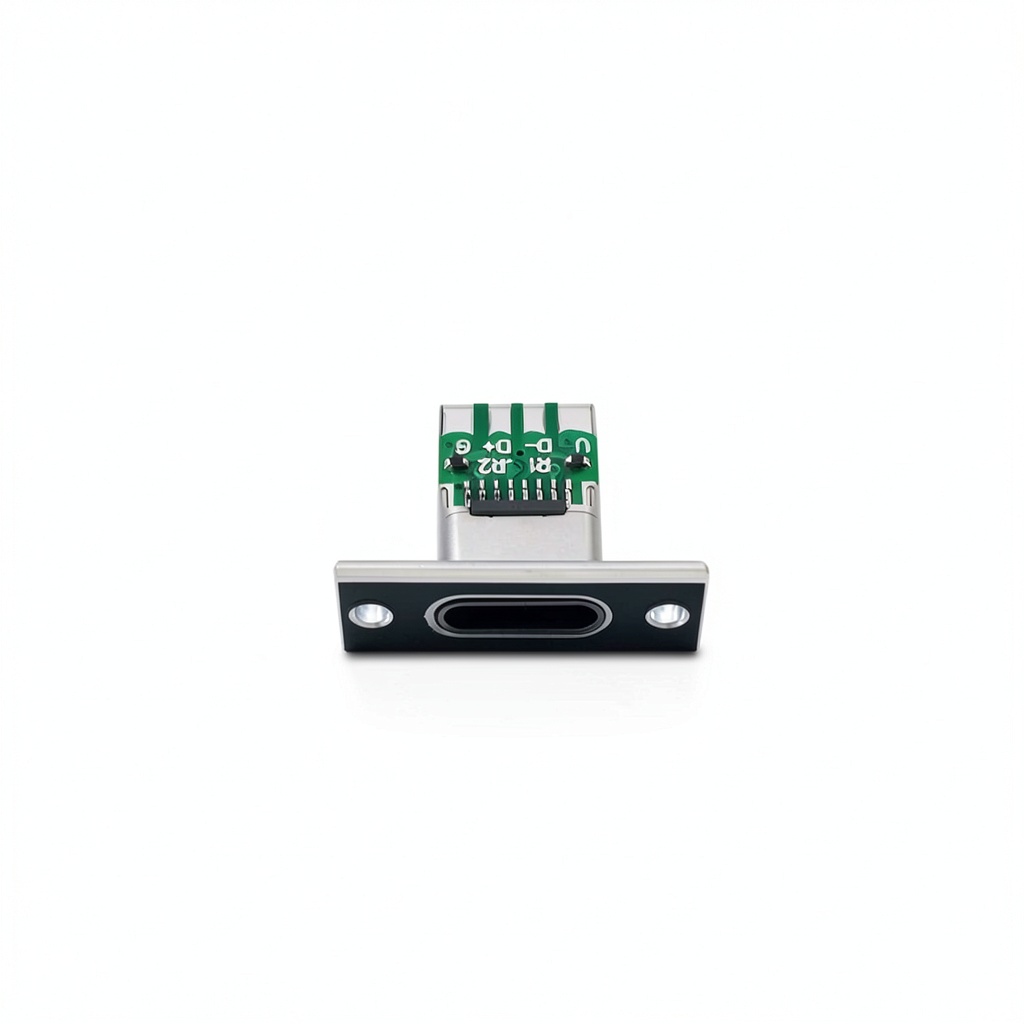

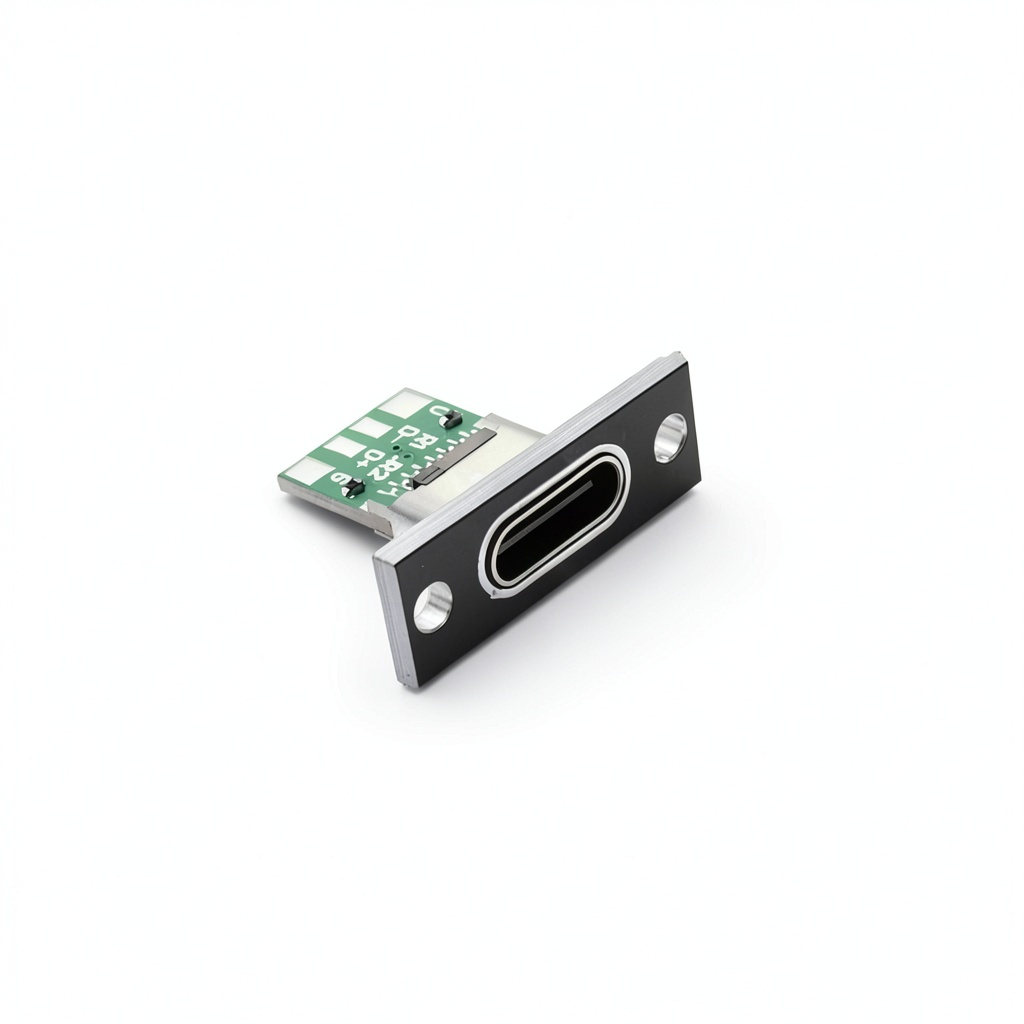

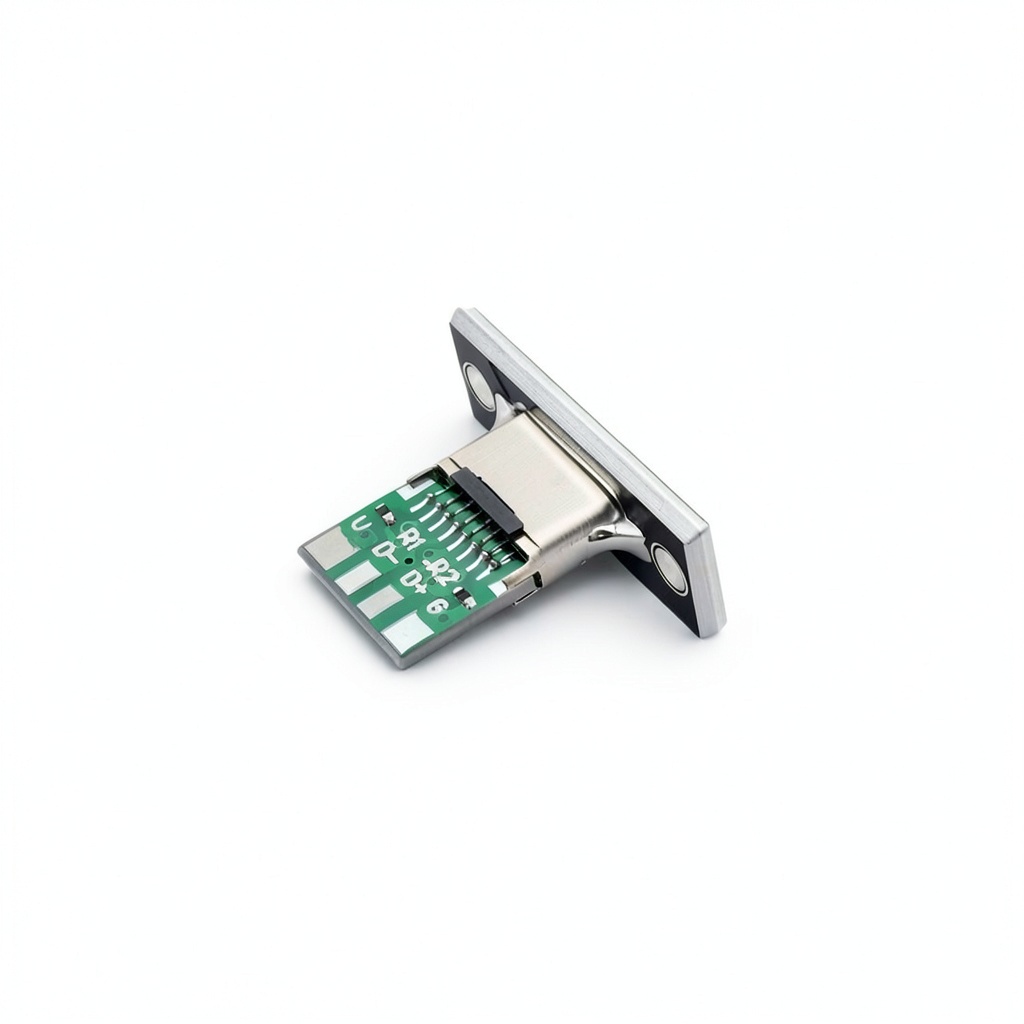

The USB-C panel socket from The Lord of the Tools is engineered to deliver dependable USB‑C connectivity for a wide range of electronic assemblies. Each package contains ten identical connectors, each featuring six precisely spaced pins that align with the USB‑C standard for power and data transmission. The connectors are designed for panel‑mount applications, offering a 2 mm mounting screw hole that secures the component firmly to a printed circuit board (PCB) or enclosure panel. With dimensions of 20.1 × 6.7 × 1.5 mm, the socket occupies minimal board real estate, making it ideal for space‑constrained designs such as handheld devices, development kits, and compact sensor modules. The component is fabricated from high‑quality copper alloy with a gold‑plated finish on the contact surfaces, ensuring low contact resistance and long‑term reliability even under repeated insertion cycles. The included solder pads are clearly labeled: V (5 V power), GND (ground), D+ and D‑ (data lines), and CC1 and CC2 (configuration channels), simplifying the wiring process for engineers and hobbyists alike. The product complies with USB 2.0 specifications, guaranteeing data rates up to 480 Mbps and power delivery up to 5 V at 1.5 A, which is sufficient for most peripheral devices, including keyboards, mice, flash drives, and low‑power sensors. The package dimensions of 5.16 × 4.33 × 0.63 inches and a lightweight of 0.352 oz make shipping and inventory handling straightforward. The connector has earned a solid 4.6‑star rating from customers, reflecting its consistent performance and ease of integration.

Usage

Designed with versatility in mind, this USB‑C panel socket fits seamlessly into a variety of project environments. For makers working on Arduino or Raspberry Pi‑compatible boards, the socket provides a clean, solder‑ready interface that eliminates the need for bulky breakout boards. In industrial settings, the connector can be mounted on control panels, instrumentation enclosures, and fiber‑optic communication modules where a reliable USB‑C link is required for firmware updates or data logging. The compact footprint allows it to be placed on densely populated PCBs without interfering with adjacent components, which is especially valuable in wearable technology, IoT devices, and portable medical equipment. The six‑pin layout supports both power and high‑speed data, enabling developers to create dual‑function ports that charge devices while simultaneously transferring data. Because the socket is panel‑mount, it can be exposed on the exterior of a chassis, providing end‑users with a convenient, tool‑free connection point. The robust construction also tolerates moderate mechanical stress, making it suitable for applications that experience vibration or occasional handling, such as robotics, drones, and automotive diagnostic tools. Whether you are prototyping a new sensor array, building a custom keyboard, or integrating a USB‑C charging port into a 3D‑printed enclosure, this connector offers the reliability and ease of use required for professional‑grade results.

Why Choose Us

The Lord of the Tools has built a reputation for delivering high‑quality electronic components that meet rigorous industry standards. Each USB‑C panel socket undergoes a multi‑stage quality assurance process, including visual inspection, electrical testing, and mechanical durability verification. The gold‑plated contacts are sourced from reputable suppliers to ensure consistent conductivity and resistance to oxidation, which translates into a longer service life for your projects. Our design team focuses on user‑centric features: the clear labeling of solder pads reduces wiring errors, while the 2 mm mounting hole aligns with standard PCB design practices, eliminating the need for custom tooling. In addition to the product itself, we provide comprehensive technical documentation, including schematic symbols, footprint libraries for popular CAD tools, and step‑by‑step installation guides. Our customer support team is available to assist with any integration questions, offering troubleshooting advice and recommendations for optimal layout. We also stand behind our products with a 12‑month warranty, reflecting confidence in the durability and performance of the connector. By choosing The Lord of the Tools, you gain access to a reliable component backed by a brand that values precision engineering, transparent communication, and long‑term customer satisfaction.

Key Features

• Compact 20.1 × 6.7 × 1.5 mm size saves board space for tight designs
• Six‑pin layout supports USB 2.0 power and data for versatile applications
• Gold‑plated contacts ensure low resistance and long‑term reliability
• Clearly labeled solder pads simplify wiring and reduce assembly errors
• 12‑month warranty and responsive technical support for peace of mind

FAQ

Can this socket be used for USB‑3.0 or higher speeds?

The socket is designed to meet USB 2.0 specifications, providing up to 480 Mbps data rates. For USB‑3.0 or higher performance, a dedicated USB‑3.0 connector is recommended.

Is the connector compatible with both male and female USB‑C cables?

This product is a female panel‑mount socket, intended to receive a standard male USB‑C plug. It is not compatible with other connector types.

What soldering method is recommended for installation?

We recommend using a fine‑tip soldering iron (15–25 W) with lead‑free solder. Apply flux to the pads before soldering to ensure a clean joint and avoid bridging between pins.

How many insertion cycles can the connector withstand?

The gold‑plated contacts are rated for at least 500 insertion and removal cycles while maintaining reliable electrical performance.

Do you provide footprint files for PCB design?

Yes, footprint and schematic symbol files are available for download in KiCad, Eagle, and Altium formats from our product page.
